Rapidox 6100 C4-FN Multi-Gas Pumpback Analyser

Exceptional accuracy and stability are provided when measuring the purity of the compartment gas, through specially selected sensors. The modular configuration allows for up to six compatible gases to be analysed simultaneously in each gas type, using one analyser. The Rapidox is fully compatible with mixtures of C4-FN & CO₂ & O₂ | mCO₂, together with carbon monoxide (CO) which is the primary toxic contamination gas The unit also measures the water content of the gas in dewpoint or ppm to ensure dryness is acceptable.

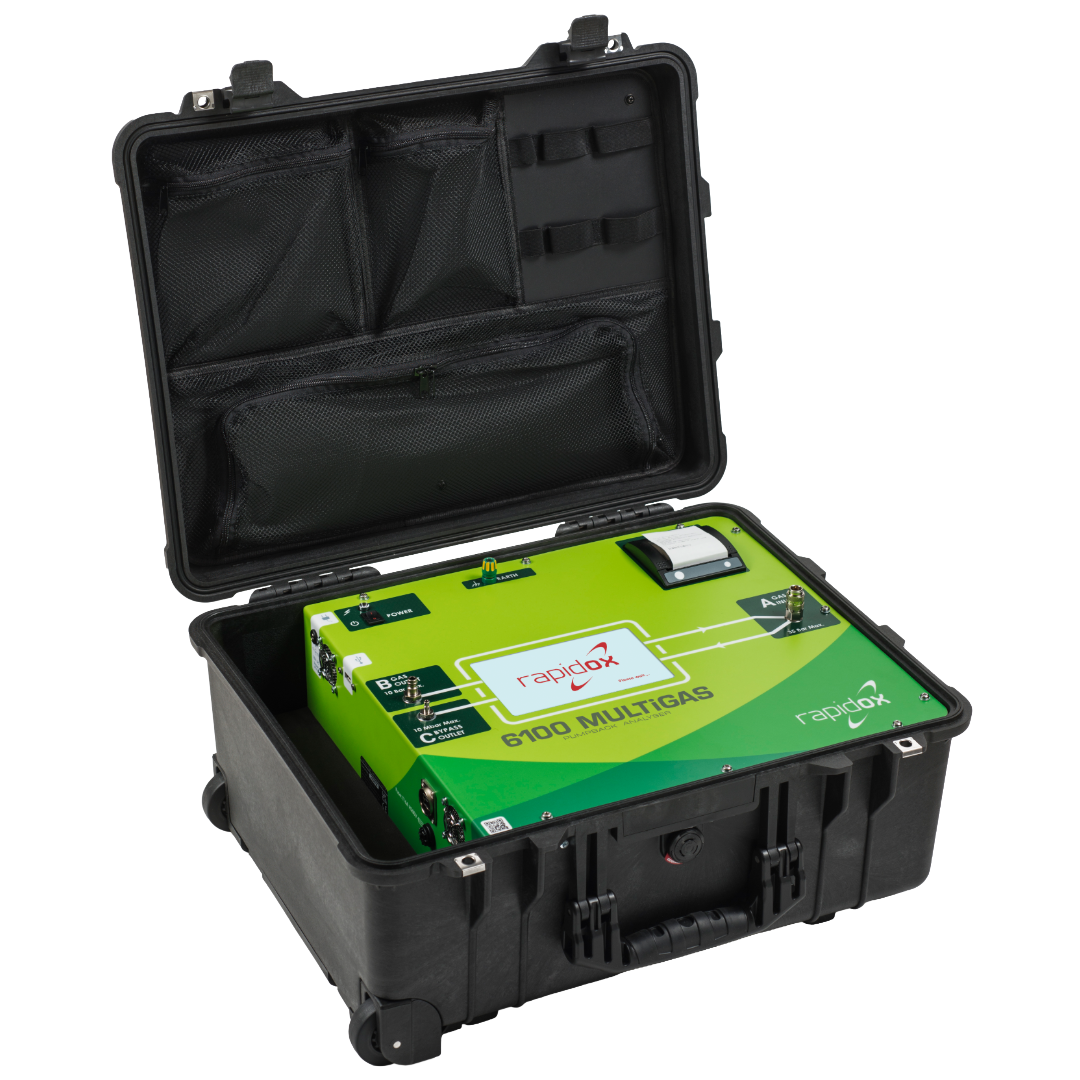

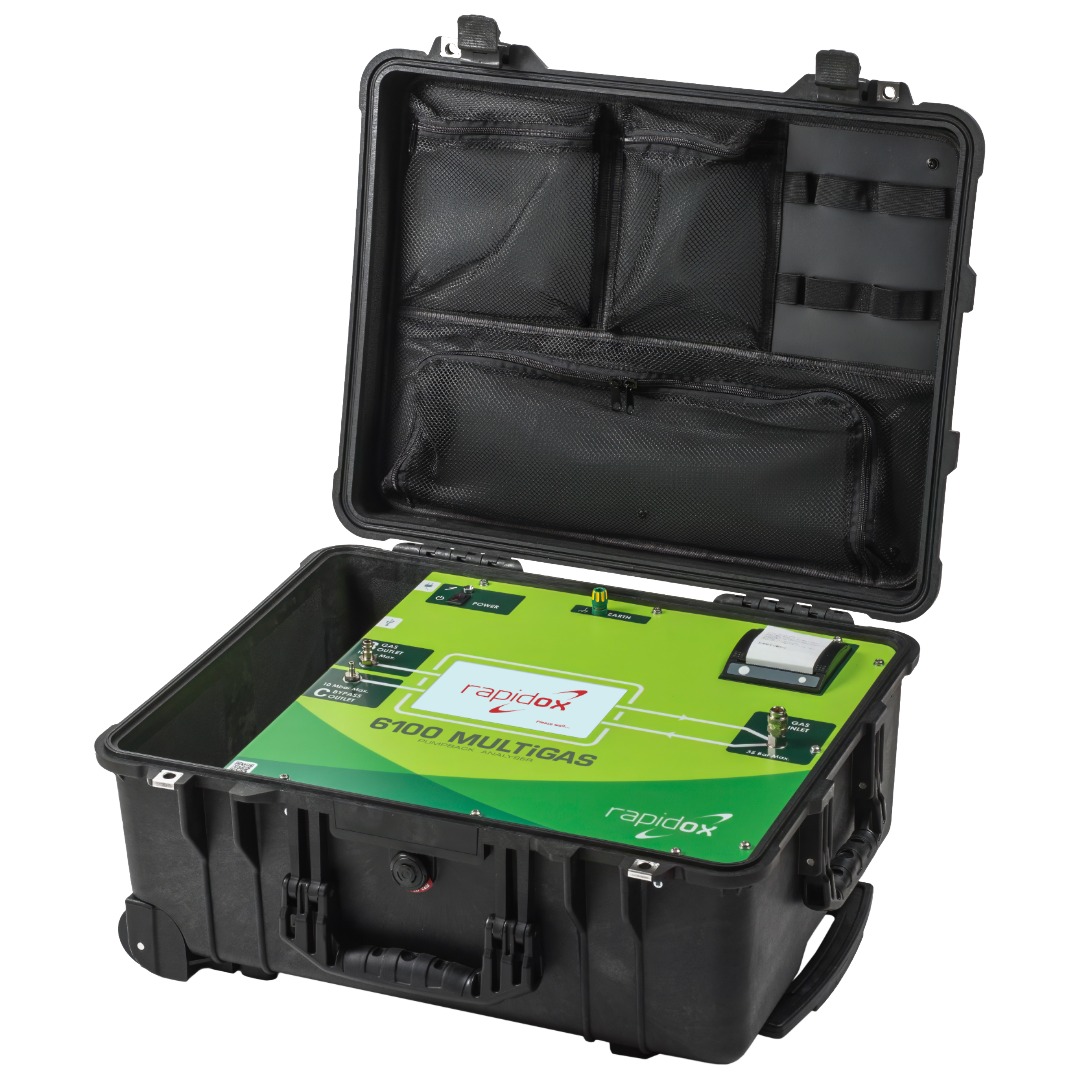

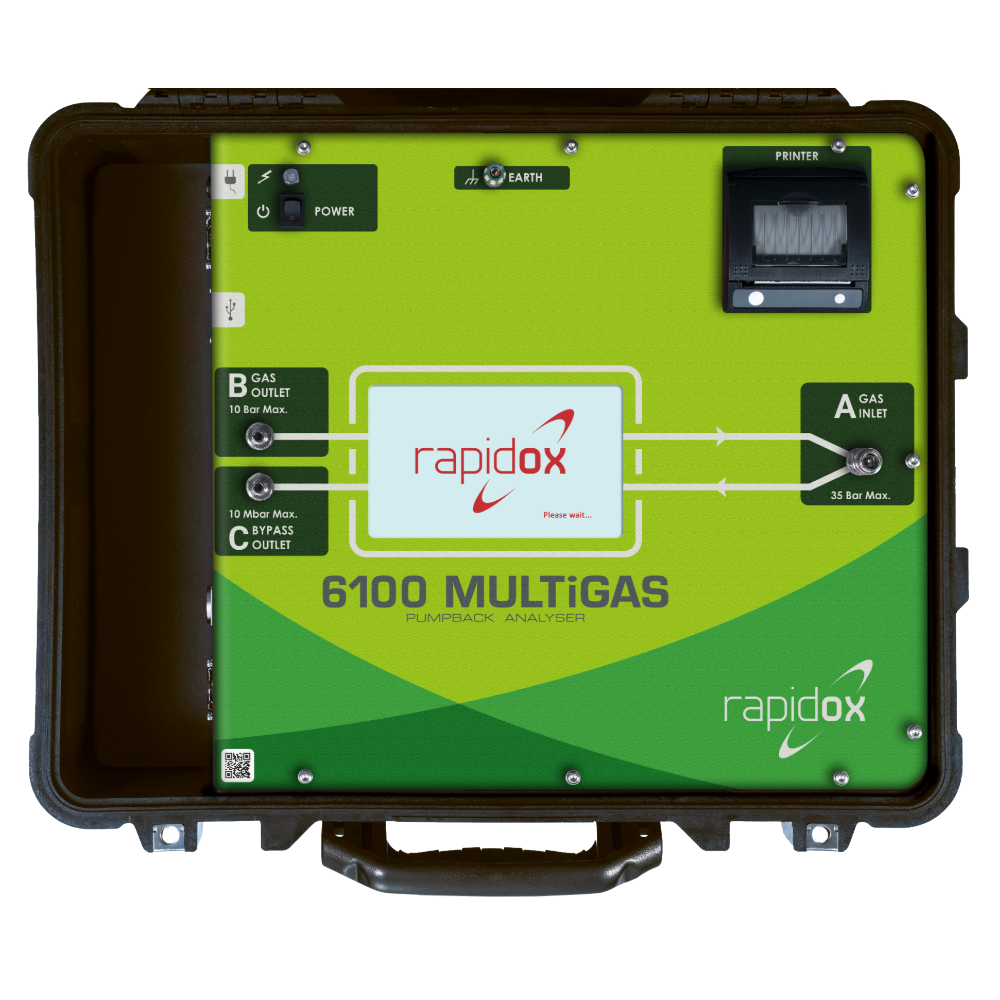

The Rapidox 6100 Multi-gas is housed neatly in an IP66-rated Peli transport case and supplied with sample hoses and compatible coupling accessories. Once powered and connected, the operator can select which gas blend to work with and the Rapidox configures the measurement screen correctly. If the user is changing gas type the unit will run a purge cycle to clean the existing gas from the analyser and into an external recovery bag. During the measurement the Rapidox automatically removes a small quantity of pressurised gas from the electrical equipment or gas cylinder, controlled with an automatic pressure sensing function. A vacuum purge cycle and internal gas storage system ensures that no air can contaminate the gas sample and that no test gas is able to escape during the testing period.

All measured gases are analysed and data logged simultaneously with only a few minutes required to achieve a stable reading. A powerful compressor then returns the gas to the electrical equipment at high pressure. Results are displayed on screen and printed using the inbuilt thermal printer if required. The unit has multiple safety features built in to ensure the cycle is completed correctly without gas loss or cross contamination.
