Rapidox SF6 6100 Portable Gas Analyser

Product Information

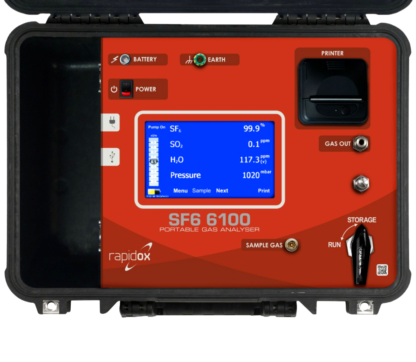

The Rapidox SF6 6100 Portable is designed for controlling and monitoring the quality of SF6 in MV & HV gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors. A gas output nozzle allows for the analyser to be attached to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.

Internal SF6 gas pressure is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading.

Read More
Category:

Product Information

The Rapidox SF6 6100 Portable is designed for controlling and monitoring the quality of SF6 in MV & HV gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors. A gas output nozzle allows for the analyser to be attached to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.

Internal SF6 gas pressure is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading. In order to accelerate the time taken in-between dew point readings, a unique Rapidri system is fitted to analysers measuring H2O. When not in use the sensor can be isolated via the ‘Run – Storage’ valve.

Other measurable gases include H2O (dew point), SO2, HF, O2 & CF4. Due to the instruments modular design, a number of configurations are available in order to suit a variety of application requirements.

Features

  • Easy to operate and configure.
  • Housed within a heavy duty IP66 Peli case.
  • Total weight of 8.5kg.
  • Lithium battery provides up to eight hours of operation.
  • Pre-programmed with all current IEC and CIGRE test configurations.
  • Ability to create customised tests.
  • Measurement data can be viewed in real time.
  • Data download in an MS Excel compatible format via a USB memory stick.
  • Features a 7” (18cm) full colour touch screen, soft menu keys and alphanumeric keypad.
  • Editable test locations and user names.
  • Integrated thermal printer provides on-site printing of test results.
  • Password protection feature.
  • Multi-language.
Array ( [0] => Array ( [title] => Rapidox SF6 6100 Portable Quick Start Guide [category] => Manuals [file_type] => PDF [link] => https://www.cambridge-sensotec.co.uk/wp-content/uploads/2023/04/Rapidox-SF6-6100-Portable-Quick-Start-Guide.pdf ) [1] => Array ( [title] => Rapidox-SF6-6100-Portable-Technical-Specification [category] => Data Sheets & Application Notes [file_type] => PDF [link] => https://www.cambridge-sensotec.co.uk/wp-content/uploads/2023/04/Rapidox-SF6-6100-Portable-Technical-Specification.pdf ) [2] => Array ( [title] => D61-070-5 Rapidox SF6 6100 Portable Analyser [category] => Manuals [file_type] => PDF [link] => https://www.cambridge-sensotec.co.uk/wp-content/uploads/2023/04/D61-070-5-Rapidox-SF6-6100-Portable-Analyser.pdf ) )

Product Specification

Sensor Specification Accuracy Calibration Lifespan Sensor Type
SF6 (Sulphur Hexafluoride)0-100%±0.5% accuracyEvery 12 months>5 yearsInfrared (IR)
H2O (Dew Point)-60°C to +20°Cdp (10 – 24,000ppmV) Reading is corrected to either RT or 20oC±2°Cdp of readingEvery 12 months by Sensor Exchange2-3 yearsPolymer
SO2 (Sulphur Dioxide)0-100ppm OR 0-500ppm±2% full-scaleEvery 12 months2-3 yearsElectrochemical
HF (Hydrogen Fluoride)0-10ppm OR 0-30ppm±2% full-scaleEvery 12 months (Using HCI gas)2-3 yearsElectrochemical
CF4* (Tetrafluoromethane)0-80%±1% of full readingN/AN/A(measured by balance of SF6 + Air reading)
H2S (Hydrogen Sulphide)0-100ppm±2% full-scaleEvery 12 months2-3 yearsElectrochemical
CO (Carbon Monoxide)0-1,000ppm±2% full-scaleEvery 12 months2-3 yearsElectrochemical
O2 (Air) / N2 (Nitrogen)0-100%full-scale based on oxygen componentEvery 12 months2-3 yearsElectrochemical O2 scaled to read as Air or Nitrogen
