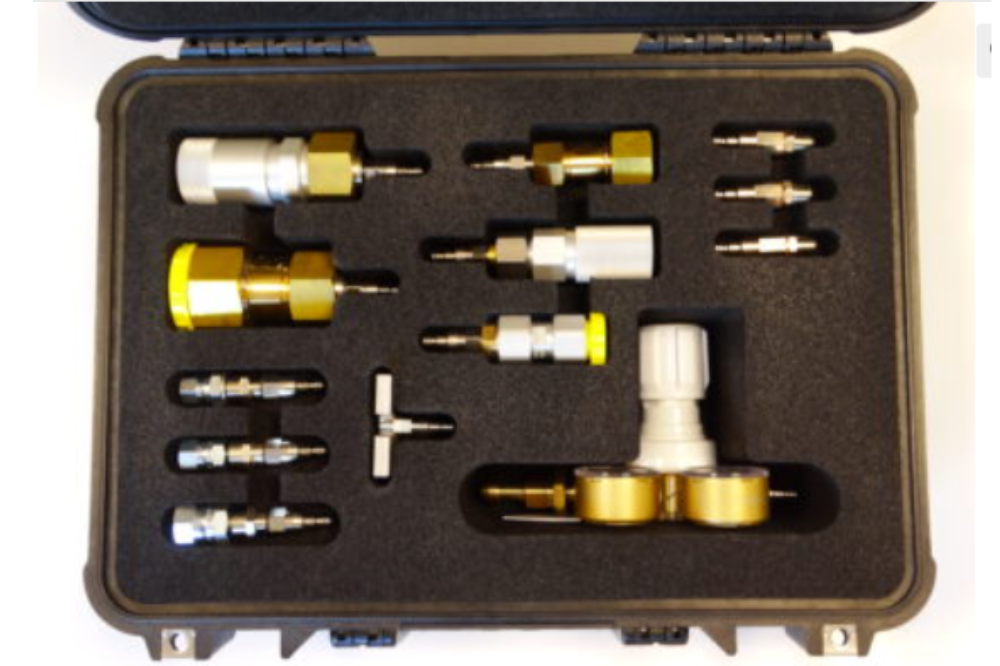

SF6 Hose Connection Kit
Product Information

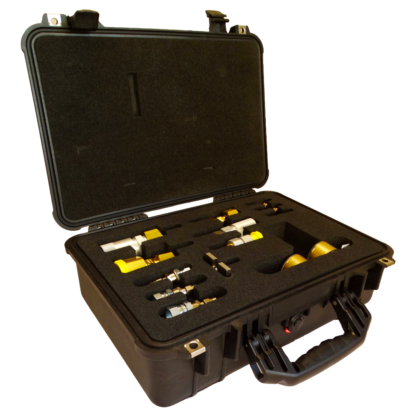

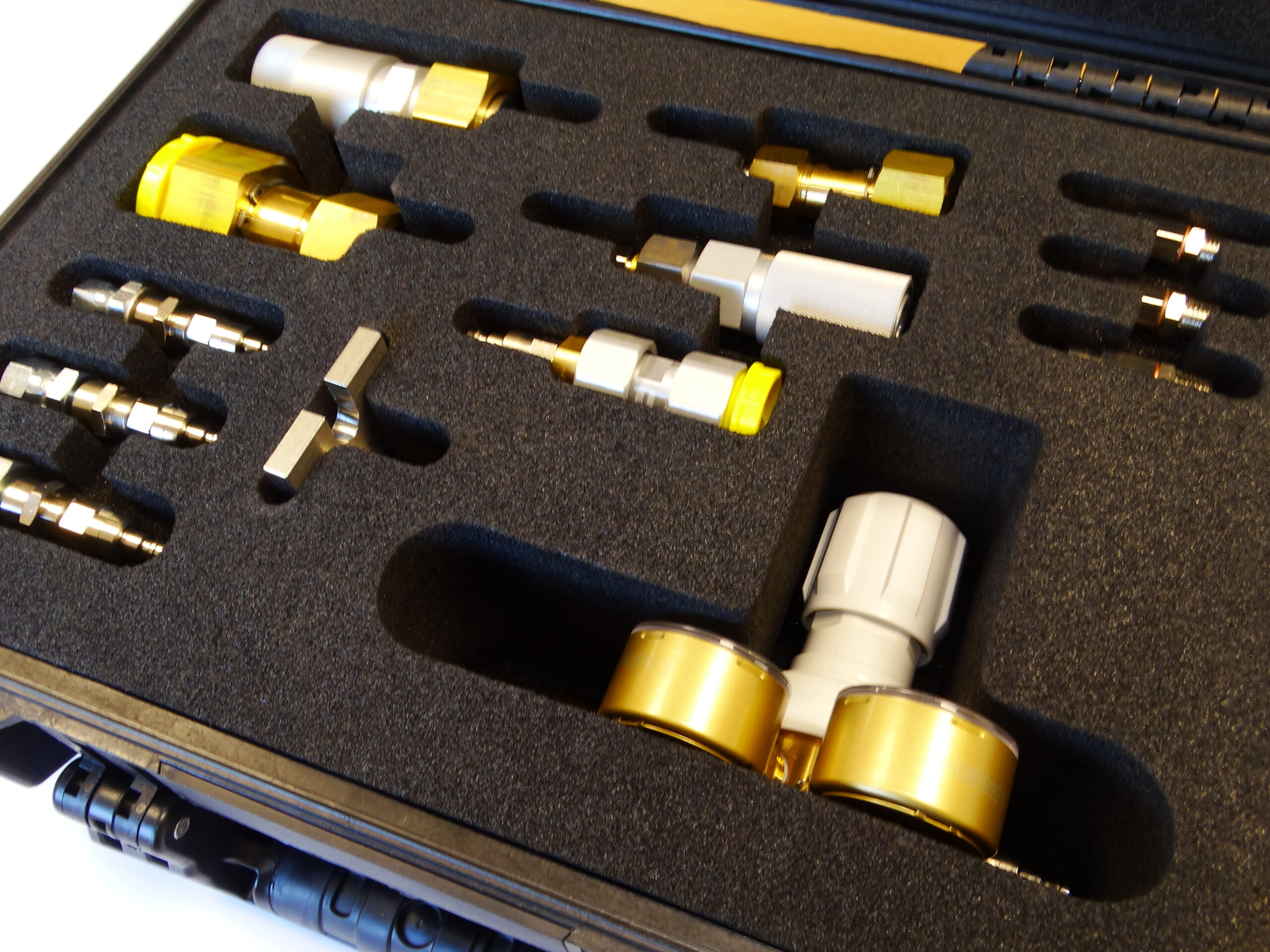

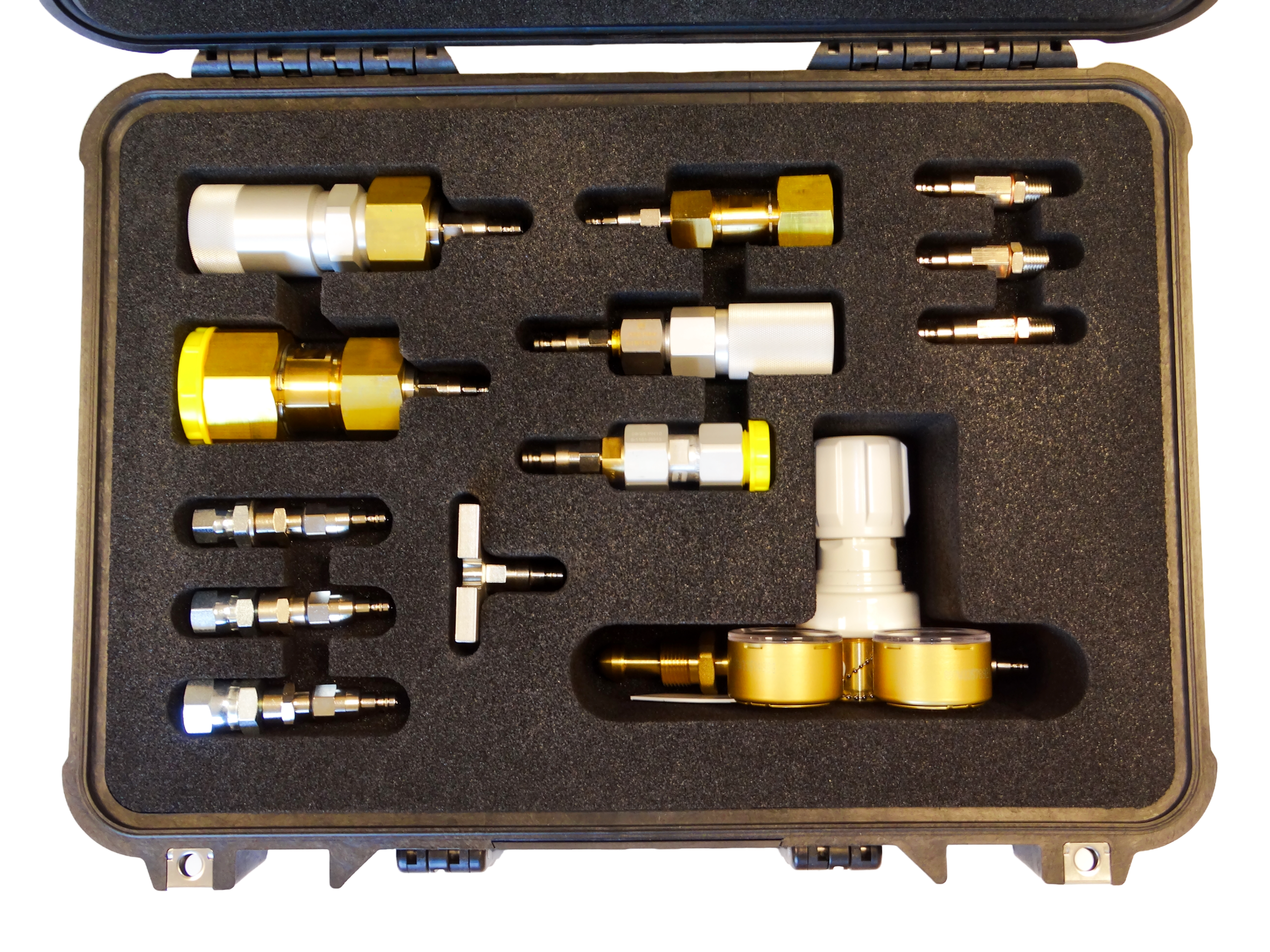

The Rapidox SF6 Connection Kit, housed in a waterproof Pelicase with foam inserts, contains all the most common connectors used on SF6 gas compartments around the world, including Siemens, ABB, Hitachi, Schneider, GE and Mitsubishi. Made from high quality components from genuine manufacturers such as DILO the kit also includes a high quality stainless steel gas bottle connector & regulator allowing sampling directly from SF6 gas bottles.
Read MoreProduct Information
The kit is fully customer-configurable, meaning you only need to purchase the components you require, with the option to add additional components at a later date should your needs change.
The full kit comprises:
- RECTUS 21 Male Quick Disconnect to ¼” Female JIC
- RECTUS 21 Male Quick Disconnect to 3/8” Female JIC
- RECTUS 21 Male Quick Disconnect to ½” Female JIC
- RECTUS 21 Male Quick Disconnect to 1/4” Male NPT (3 pcs)
- RECTUS 21 Male Quick Disconnect to DN20 Female
- RECTUS 21 Male Quick Disconnect to DN8 Female
- RECTUS 21 Male Quick Disconnect to DN6 Female
- RECTUS 21 Male Quick Disconnect to DN7 Female
- RECTUS 21 Male Quick Disconnect to DN12 Female
SF6 dual-stage stainless steel regulator with RECTUS 21 Male Quick Disconnect, supplied with either BS 431 No. 3 (Air Products) or No. 6 (BOC) bottle fitting

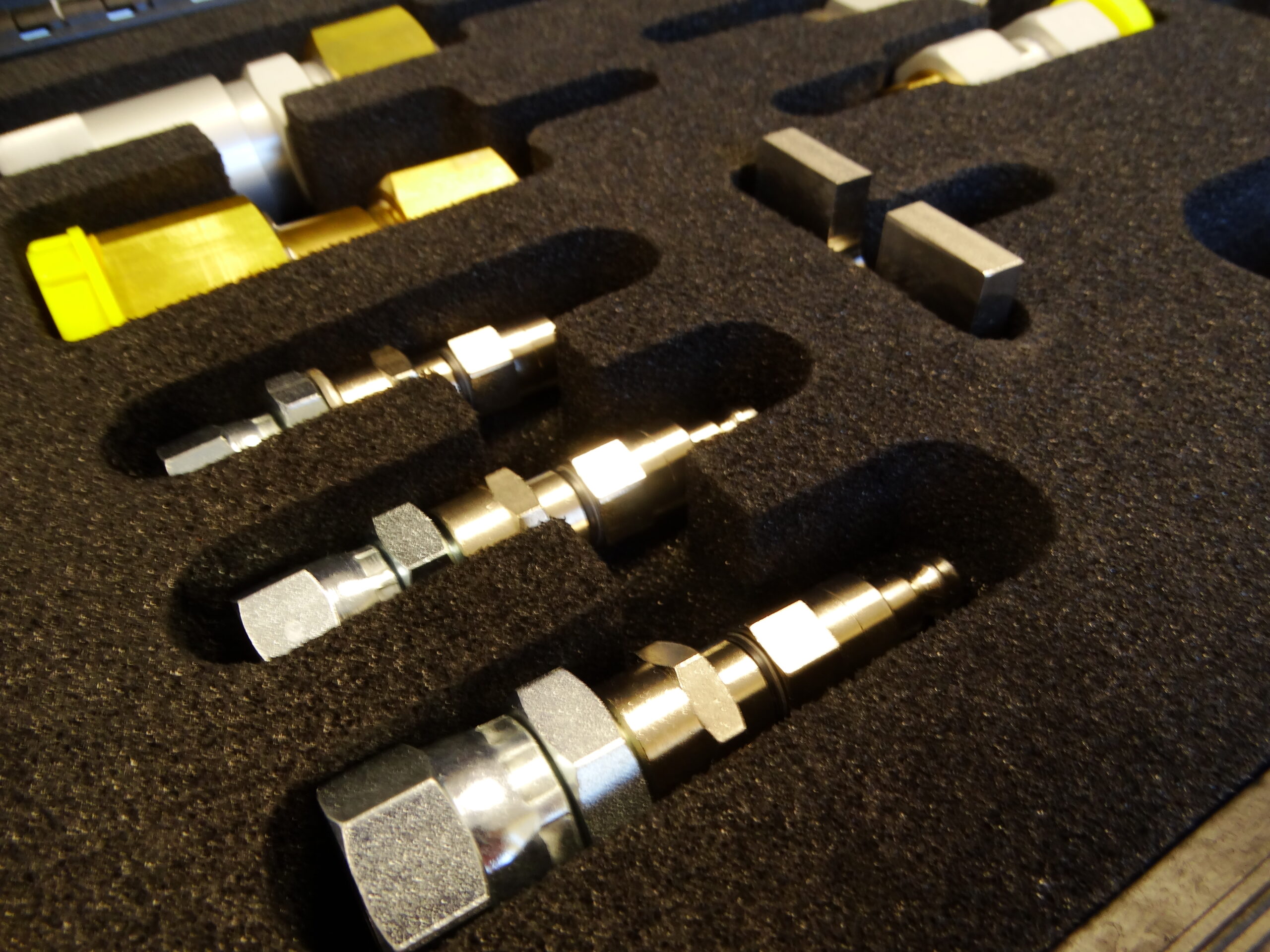

Rectus Series 21 connectors are the industry standard for connecting SF6 sampling hoses to gas analysers, including the Rapidox SF6 family of instruments.
They are closed couplings designed to minimise gas leakage during connection and disconnection.
Features
- Full set of common SF6 couplings used around the world
- Only genuine OEM manufacturers parts used
- Gas regulator for sampling directly from gas bottles
- User specified configuration of parts
- Housed in rugged IP65 Peli case
Product Resources
Product Specification
| Type | Measurement |
|---|---|
| Case Dimensions | 180mm(H) x 480mm(W) x 360mm (D) |
| Weight Including Fittings | 7kg |
